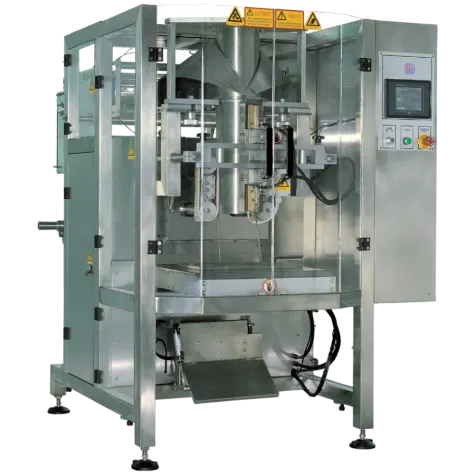

ELC EX Series High-Speed Twin-Servo VFFS Vertical Automatic Packaging Machine

ELC EX Series High-Speed Twin-Servo VFFS Vertical Automatic Packaging Machine

The ELC EX Series features advanced technology, a stainless steel frame/cabinet, and an intermittent-motion, single-jaw VFFS bagmaker designed for high efficiency.

Product Information

Features

  • Film registration is controlled by a highly accurate single-position photo eye, requiring no manual adjustments except for lateral adjustments for different web widths. Cut-off position and lateral adjustments can be modified on the fly via the touchscreen during production.
  • One-piece bag former allows for quick tool-free changes.
  • Hot printer or TTO printer works synchronously with the film feeding system.
  • PLC controller with a user-friendly touchscreen interface for simple operation.
  • Servo motor-driven film pulling and sealing jaws.
  • Safety switch on access doors for enhanced protection.
  • Stainless steel construction ensures durability and easy sanitation.
  • Speeds up to 100 bags per minute, depending on bag size, film material, and the speed of associated filling equipment.

EX Series Specs - (larger options available)

ModelELC-EX-400ELC-EX-500ELC-EX-620
Max. film width15.74in
(400 mm)		19.68in
(500mm)		24.4in
(620mm)
Bag Width*2.37-7.48in
(60-190mm)		3.15-9.44in
(80-240mm)		4.34-11.81in
(110-300mm)
Bag Length1.97-9.05in
(50-230mm)		1.97in-11.81in
(50mm-300mm)		1.97in-14.96in
(50mm-380mm)
Max. Packing Speed**100bpm90bpm85bpm
Power Supply220V, 60HZ, 3.5kW220V, 60HZ, 4.0kW220V, 60HZ, 4.5kW
Air Request88psi, 8cuft/min88psi, 8cuft/min88psi, 8cuft/min
Outer Dimensions51.19*37.8*45.28in61.03*45.67*58.27in63*49.61*66.15in
Price***$49,950$55,950$59,950

*Bag width range may vary based on back seal type and width.

**Actual packaging speed depends on bag size, film material, product flow, and the speed of the filling equipment.

***Pricing may vary with different options.

Optional Devices

  • Nitrogen gas flushing
  • Gusset device
  • Air expeller
  • Hole punch device
  • Tear notch device
  • Material stopper
  • Custom programs
  • Bag support
  • PE sealing system
  • Vacuum packing device
  • Flip device
  • Static charge eliminator
  • 4-line folding device
  • Film tracking device
  • Special sealing jaws

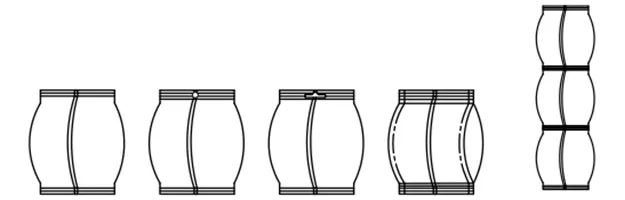

Bag styles

Bag styles

Free Consulting & Design

At ELC Packaging Machines Co., we understand that choosing the right packaging solution for your products and facility is crucial to your success. That's why we offer invaluable expertise through our free consulting services. Our team of packaging experts are dedicated to understanding your unique needs and challenges, ensuring that you receive tailored guidance to optimize your packaging process. With ELC, you're not just a customer, you're a partner in packaging excellence.
